Labivew 中可以直接呼叫 .NET DLL ,iammic 沒想到原來 Labview 也可以 Build 成 DLL 讓 .NET
呼叫,下列 iammic 要示範一個簡單使用 VB.NET 呼叫 Labview DLL。
SETP 1.建立一個 Labivew Project。
SETP2.專案中建立一個 VI。
SETP3.寫一個簡單程式,下列是一個簡單的將輸入的數值 +1 然後輸出的程式。
程式畫面:
程式:
請參考 SUB VI 將 Numeric 連接到左邊 Input,Numeric2 連接到右邊的 Output,如下圖。
SETP4.到 Project Explorer 中的 Build Specifications 中按右鍵點選

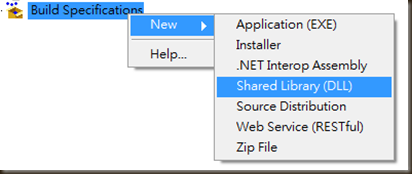

【New】->【Shared Library(DLL)】
SETP5.輸入你要儲存 Build 好的 DLL 所在目錄。

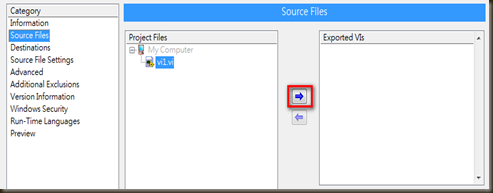

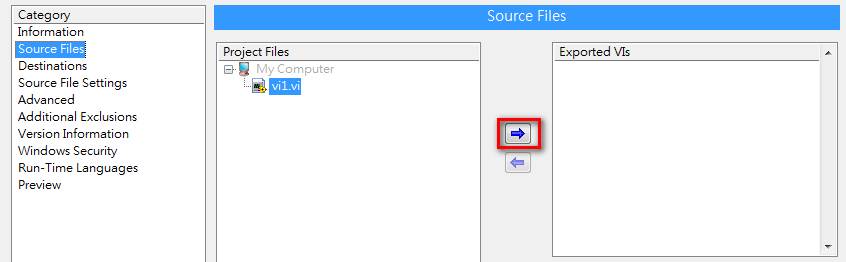

SETP6.選擇要Exported VIs 的 VI 點選圖中標記的箭頭按鈕。

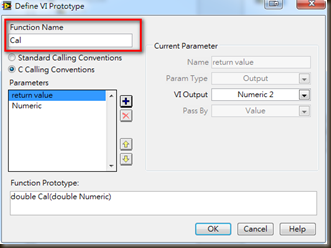

SETP7.檢查輸入輸出參數無誤,可修改 Funtion Name 為自己想要的名稱,點選 【 OK】 按鈕。
SETP 8.直接點選 Build 按鈕進行 Buid。
SETP 9.寫一個簡單的 VB.NEt 調用程式。
程式畫面:
程式 :
Public Class Form1
Declare Auto Function Cal Lib "SharedLib.dll" (ByVal val1 As Double) As Double
Private Sub test_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles test.Click
Me.txtOutput.Text = Cal(Val(Me.txtInput.Text))
End Sub
End Class
SETP 10.將 Labivew DLL 放置到 VB.NET 產生 .EXE 檔案目錄下。
最後執行程式,輸入你要的數值在 Input 欄位中,點選 【test】按鈕,Output 產生+ 1 數值。
註記:
如果 Build Vb.NET 程式發生 PInvokeStackImbalance 錯誤
可以參考 http://msdn.microsoft.com/zh-tw/library/0htdy0k3.aspx
在 Visual Studio Menu 中【偵錯】->【例外狀況】->【Managed Debugging Assistants】
中的 PInvokeStackImbalance 將擲回取消。
